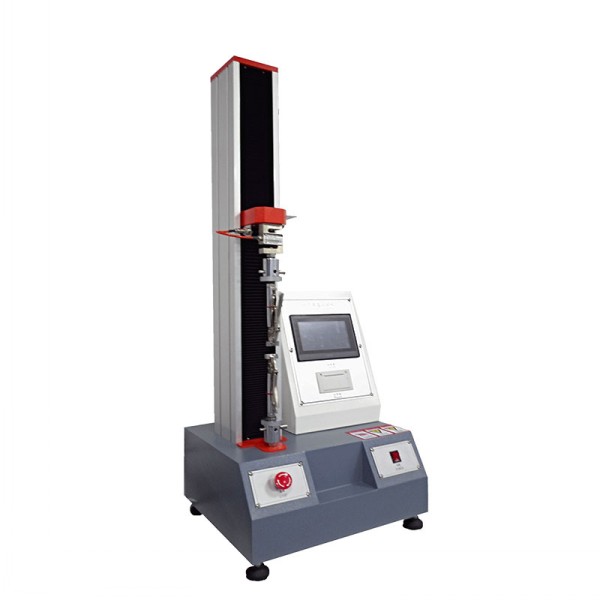

universal tensile testing machine
Product Description
Applications-2kn 200kg used electric tensile strength test machine
- 2kn 200kg used electric tensile strength test machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
touch screen control,easy to operate, can print the test result.
Features-2kn 200kg used electric tensile strength test machine
1.Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy, low-resistance and zero clearance of dualball screw and oriented pole, through which highly
improve the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.

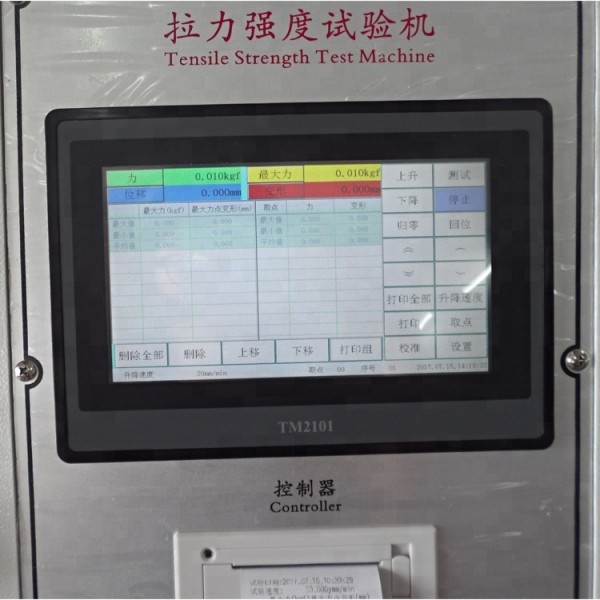

3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation.
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test We offer very low price and guarantee the quality of the product.
Technical parameters-2kn 200kg used electric tensile strength test machine
| Model | DZ-102 |
| Test precision | within ±1% |
| Capacity | 2,5,10,20,50,100,200Kg |
| Degree of disintegration | 1/25,000 |
| Display | can display the test value, the maximum value via LED |
| Accuracy | ±0.5% |
| Max.stroke | 1000mm (including fixture) |
| Sampling frequency | 200times/sec |
| Test speed range | 50~300mm/min(adjustable ) |
| Degree of disintegration | 1/25,000 |
| Motor | AC motor |
| Test precision | Within±1% |
| Effective width | 150mm |
| Effective space | 650mm/800mm/1000mm |
Design standards-Fabric Inspection Measuring Equipment Device
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7...etc.

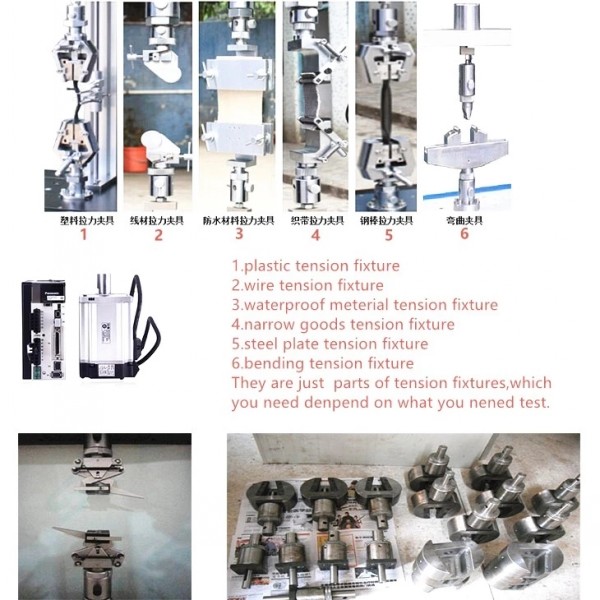

Clamps show-Fabric Inspection Measuring Equipment Device
FAQ
1. Q: What is your warranty ?
12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
